3m Unitek Forsus Fatigue Resistant Device L-Pin Module

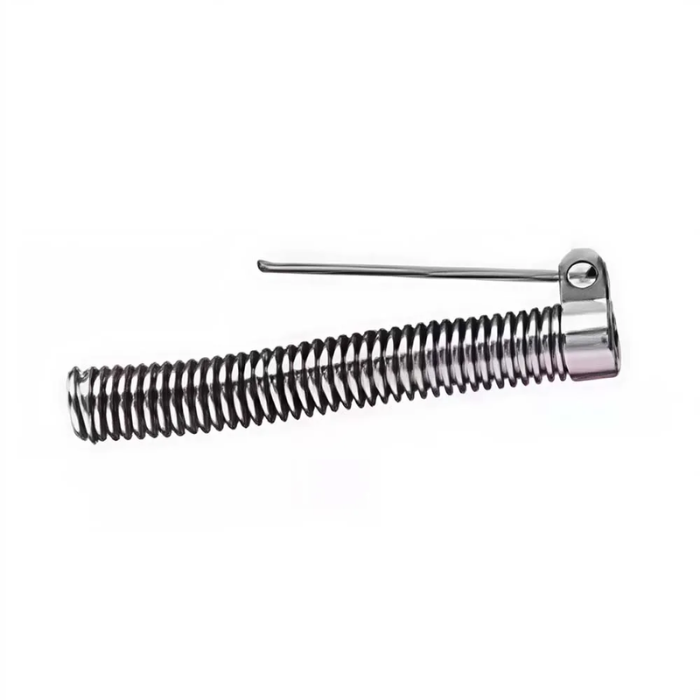

The Forsus™ L-Pin Spring Module by 3M Unitek is a fatigue-resistant, telescoping coaxial spring appliance used in Class II malocclusion treatment. It offers a simplified chairside installation without lab work and provides consistent, patient-friendly, compliance-free force application throughout treatment.

In stock

SKU

SBUN01277

Grouped product items
Product Name	Qty
3M Unitek Forsus L-Pin Module - Short 25 mm ₹6,595.00 (Inclusive of 18% GST)
3M Unitek Forsus L-Pin Module - Large 32 mm ₹6,595.00 (Inclusive of 18% GST)
3M Unitek Forsus L-Pin Module - Medium 29 mm ₹6,595.00 (Inclusive of 18% GST)
3M Unitek Forsus L-Pin Module - Extra Large 35 mm ₹6,595.00 (Inclusive of 18% GST)
3M Unitek Forsus L-Pin Module - Extra Extra Large 38 mm (XXL) ₹6,595.00 (Inclusive of 18% GST)

3m Unitek Forsus Fatigue Resistant Device L-Pin Module is available to buy in increments of 1

Product Description

Features:

One-step chairside installation into the headgear tube
Telescoping coaxial spring allows normal jaw movement
Compact stainless steel design minimizes cheek irritation
Fatigue-resistant with low spring stress
Open coil spring design supports easy cleaning
Universal left/right components for flexible use
Compatible with gingival or occlusal headgear tubes
Can be used unilaterally or bilaterally

Technical Details

Technical Details
Technical Specification	Country of Origin: United States of America Manufacturer: 3M Unitek Orthodontic Products Installation: Chairside, one appointment; no lab work or bracket/archwire removal required Compatibility: Works with gingival/occlusal headgear tubes and Forsus Wire Mount (no molar tube required) Force Level: Approximately 200 grams Design: Telescoping coaxial spring, open spring assembly Orientation: Left and right sides are universal

Product Components

1 x Patient kit

Directions to Use

Preparation: Ensure patient’s appliance and headgear tube are clean and ready.
Select Module: Choose the L-pin module as per patient’s anatomy and tube orientation.
Installation:
- Grip module with Weingart or appropriate pliers
- Insert into occlusal or gingival headgear tube
- Confirm correct and secure placement
Adjustment: Make minor adjustments if needed for optimal function
Patient Education:
- Instruct on oral hygiene and care of the appliance
- Emphasize not to tamper with the appliance
Follow-Up:
- Schedule routine check-ups
- Adjust or replace components as needed for continued effectiveness
Reference Guide: Use 3M Unitek’s instructions for additional troubleshooting and guidance

Product Advantages

Quick & Easy Installation: Saves time with no lab work or bracket removal
High Patient Compliance: Fixed appliance eliminates the need for patient action
Consistent Force: Maintains 200g of force continuously throughout treatment
Patient Comfort: Compact design reduces cheek irritation; linear compression enhances comfort
Hygiene Friendly: Open spring design enables easier cleaning
Predictable Results: Compliance-free, long-lasting forces allow better treatment planning
Versatile Application: Suitable for various Class II correction cases including deep bite, open bite, molar distalization, and midline correction
