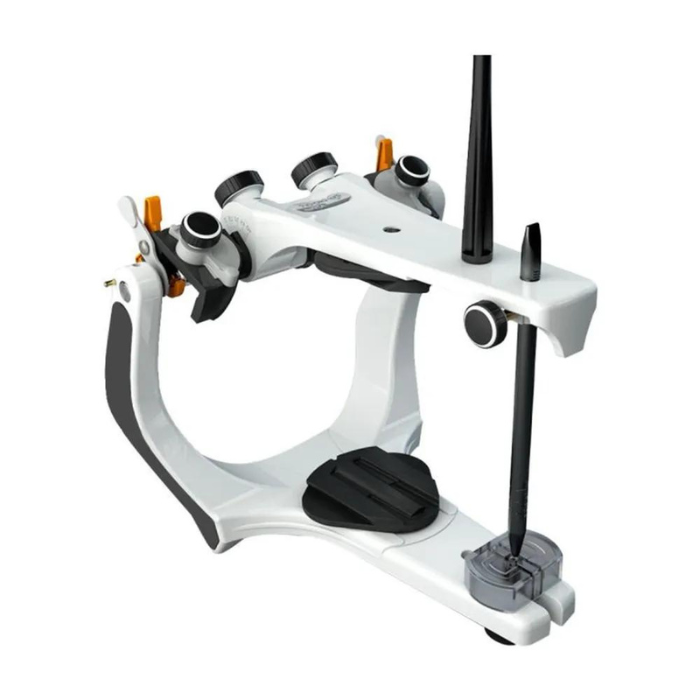

Bio-Art Articulator A7 Plus & Elite Face-Bow - COA7EF

Articulator A7 Plus & Elite Face-Bow Set 1 :

• 1 x Articulator A7 Plus
• 1 x Elite Facebow
• 1 x Nasal Nose piece Assembly
• 1 x Jig Transfer Assembly
• 1 x Transfer Set Support
• 1 x Fork for Dentate Patient
• 1 x Allen wrench 2mm
• 1 x Plastic Case
• 1 x Frame Support Pin
• 1 x Mounting Plate Knob
• 1 x Instruction manual

• Nazium Relator Removal: Detach the Nazium Relator from the facebow.
• Articulator Preparation: Take out the pin and incisal table from the articulator.
• Transfer Set Placement: Position the transfer set support.
• Fixation Screw Tightening: Securely tighten the fixation screw.
• Transfer Set Removal: Detach the transfer set from the facebow.
• Cast Attachment: Fix the plaster cast onto the fork.
• Transfer Set Positioning: Place the transfer set into the support.
• Fork Support Placement: Position the fork support on the articulator.
• Cast Hydration: Moisten the plaster cast.
• Plaster Application: Spread plaster over the cast and mounting plate.
• Rail Penetration: Ensure the plaster fills the rail retention grooves.
• Articulator Opening: Once the plaster has set, open the articulator.
• Repositioning Components: Return the incisal table, incisal pin, and mounting plate to their original positions.
• Incisal Pin Adjustment: Set the incisal pin to zero.
• Lower Cast Repositioning: Realign the lower cast.
• Mounting Plate Fixation: Firmly secure the lower cast to the mounting plate.

• Precision & Stability: Magnetic stabilization and adjustable guides ensure accurate occlusal analysis.
• Efficiency: The jig transfer assembly eliminates the need for a face-bow during articulator assembly.
• Comfort & Hygiene: Removable and sterilizable earpieces improve user comfort and maintain hygiene.
• Enhanced Usability: Smooth lateral movement and an easy-to-use locking mechanism enhance workflow.
• Durability: Robust aluminum construction ensures long-lasting performance.
