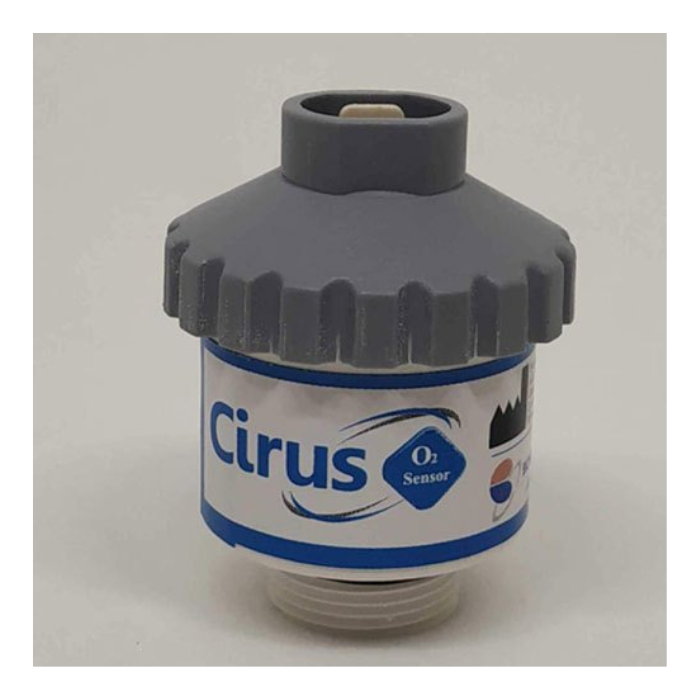

Cirus OS 1 Medical Oxygen Sensor

The Cirus OS 1 Medical Oxygen Sensor is a high-precision device designed for continuous and reliable oxygen concentration measurement in medical environments. Ideal for use in hospitals and clinical settings, it delivers fast response, high accuracy, and long operational life, ensuring safety and performance in oxygen therapy and monitoring systems.

In stock

SKU

SBCI02020

Price: 0.00 (Inclusive of Taxable Goods)

Cirus OS 1 Medical Oxygen Sensor is available to buy in increments of 1

Product Description

Features:

Wide Measurement Range: Measures oxygen concentration from 0% to 100%.
Fast Response Time: Achieves 90% reading change in 15 seconds or less.
Long Sensor Life: Greater than 300,000 O₂ hours for extended use.
Excellent Stability: Less than 1% drift over a 6-hour period between 15–100% oxygen.
High Repeatability: ±1% volume O₂ between 15%–100%.
Compact & Easy Integration: Features a 3-pin Molex connector for efficient interfacing.
Robust Build: Operates reliably across a broad temperature and humidity range.

Technical Details

Technical Details
Technical Specification	Brand: Cirus Model: OS 1 Usage/Application: Hospital / Clinical Oxygen Monitoring Measurement Range: 0% to 100% (at atmospheric pressure) Output Range: 9 to 13 mV (at dry ambient air) Nominal Sensor Life: >300,000 O₂ hours Zero Offset Voltage: <220 V in 100% N₂ Operating Temperature: 0°C to 40°C Storage Temperature: -20°C to +50°C Operating Humidity: 0% to 93% RH (±2%) – non-condensing Response Time (T90): ≤15 seconds Linearity Error: <3% of full scale Repeatability: ±1% Volume O₂ (15%–100% range) Operating Pressure Range: 0.6 bar to 2 mbar Stability: <1% over 6 hours (within 15% to 100% oxygen) Electrical Interface: 3-pin Molex connector Warm-up Time: <30 minutes after sensor replacement Packaging Type: Box

Product Components

1 × Cirus OS 1 Medical Oxygen Sensor

Product Advantages

Reliable & Accurate Readings: Ensures precise oxygen monitoring in critical care settings.
Quick Response: Facilitates rapid system feedback during patient monitoring.
Long Operational Life: Low maintenance and cost-effective for hospitals.
Easy Integration: Plug-and-play Molex connection simplifies installation.
Suitable for Various Devices: Can be used in ventilators, anesthesia machines, and oxygen analyzers.
Safe & Compliant: Designed for medical-grade performance and reliability.
