Julldent D-Shaped Spreaders Tatum Pattern Set of 4
Julldent D-Shaped Spreaders Tatum Pattern Set of 4 is specifically designed for ridge expansion and labial plate recontouring during implant procedures. Made from Titanium Grade 5 with precision-sharpened D-shaped tips, these spreaders minimize bone compression and reduce the risk of buccal fractures while enhancing implant site preparation.
Contact us for sales assistance from our Biomedical Engineer.
Features:
-
Precision-sharpened D-shaped tips for accurate and safe placement
-
Minimizes post-operative bone compression and pH loss
-
Titanium Grade 5 construction for superior strength and longevity
-
Ideal for ridge expansion and recontouring of the labial plate
-
Reduces the risk of buccal cortical plate fracture
-
Can be used with socket formers and osteotomy burs
| Technical Specification |
|
|---|

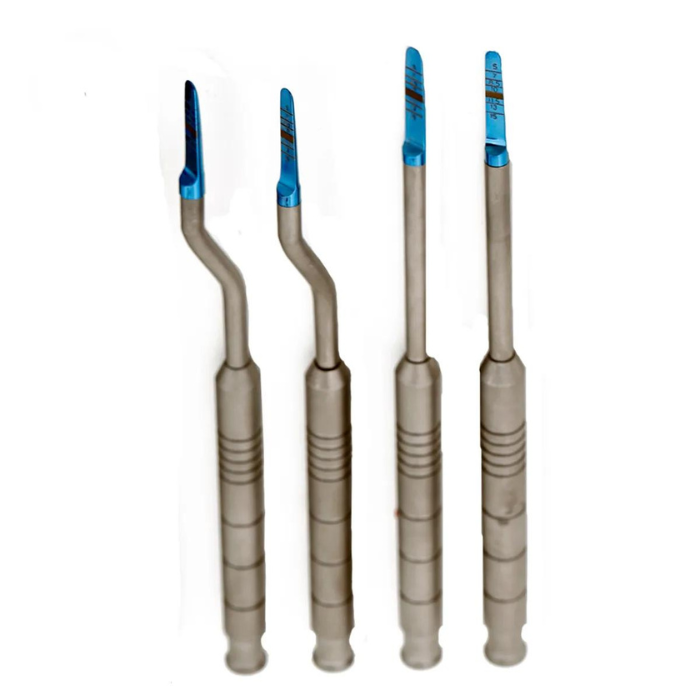

D-Shaped Spreaders Tatum Pattern Set of 4 :
- 1 x 4.0 mm Straight
- 1 x 5.5 mm Straight
- 1 x 4.0 mm Offset
- 1 x 5.5 mm Offset
-
Prepare the implant site using socket formers or osteotomy burs if needed.
-
Select the appropriate size D-shaped spreader.
-
Position the spreader with the flat side toward the palate and the convex side to the labial or buccal side.
-
Gently insert and rotate the spreader to gradually expand the ridge.
-
Continue until the desired bone width is achieved for implant placement.
-
Follow standard post-op protocols for healing and implant placement.
-
Allows for controlled expansion of the maxillary ridge
-
Enhances bone support for successful implant placement
-
Flat-palate and convex-labial orientation prevents buccal fracture
-
Provides minimal trauma and promotes faster recovery
-
Long-lasting titanium tips maintain sharpness and efficiency
-
Useful for both surgical and grafting procedures
