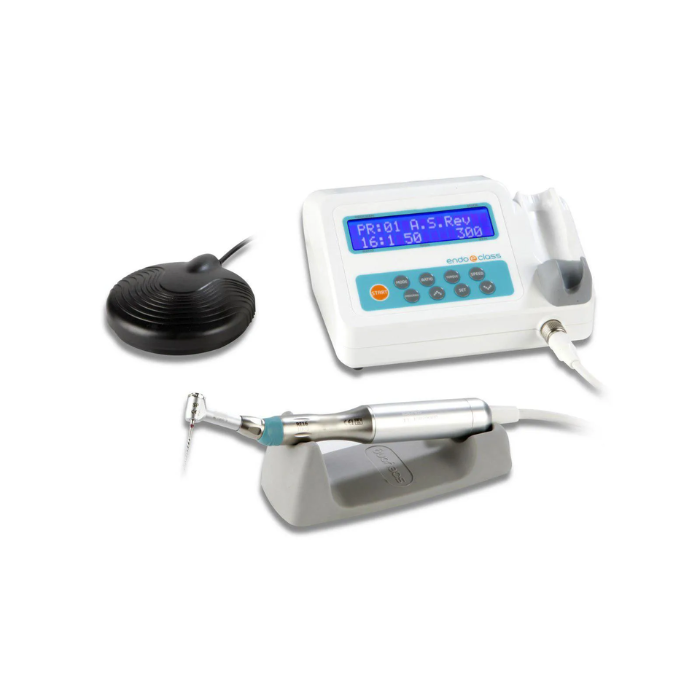

Marathon Endo E Class Endo Motor
The Marathon Endomotor E Class by Saeyang is a versatile and quiet endodontic motor, ideal for precise rotary file operations in endodontic therapy. It features auto-reverse for safety, a push-type miniature head for easy file replacement, and supports multiple gear ratios, ensuring compatibility with various handpieces. The motor operates with a maximum torque of 9.9 Ncm and offers 15 customizable programs for tailored performance.
Contact us for sales assistance from our Biomedical Engineer.
Features:
- Torque-controlled motor for safety
- Supports various handpiece ratios
- 15 customizable programs
- Auto stop/reverse functions with acoustic warning at 75% torque
- Torque range: 1-99 Nmm
| Technical Specification | Specifications of Endo E Class
Specifications of E type Motor
|
|---|
- 1 x Marathon Endo Motor E-Class
- 1 x Endodontic Handpiece (16:1)
Handpiece Attachment:
- Attach the contra-angle handpiece securely to the Marathon Endo E Class Endo Motor. Follow the instructions provided with the endomotor for proper attachment.
File Selection:
- Choose the appropriate rotary endodontic file based on the specific procedure and tooth conditions.
Loading:
- Utilize the push-button chuck loading mechanism to load the selected rotary file into the handpiece. Ensure it is securely in place.
Power On:
- Turn on the Marathon Endo E Class Endo Motor using the designated power switch.
Speed Adjustment:
- Adjust the speed control to the desired RPM (rotations per minute) according to the requirements of the procedure.
Torque Setting:
- Set the torque level as needed for the specific procedure. Ensure the torque is within the recommended range for the selected rotary file.
Positioning:
- Position the contra-angle handpiece with the loaded file in the patient's mouth according to the treatment plan.
Operate in Forward Direction:
- Initiate the operation in the forward direction to begin the biomechanical preparation process.
Auto Stop Reverse:
- In case of an overload, the auto-stop reverse feature will activate. Allow the motor to automatically reverse direction until the load is resolved.
Resume Forward Direction:
- Once the overload is resolved, the motor will automatically resume running in the forward direction.
Monitor Torque and Speed:
- Throughout the operation, keep a close eye on both torque and speed to ensure they remain within the safe and effective range.
File Removal:
- After completing the procedure, use the push-button chuck loading mechanism to safely remove the rotary file from the handpiece.
Power Off:
- Turn off the Marathon Endo E Class Endo Motor once the procedure is complete.
