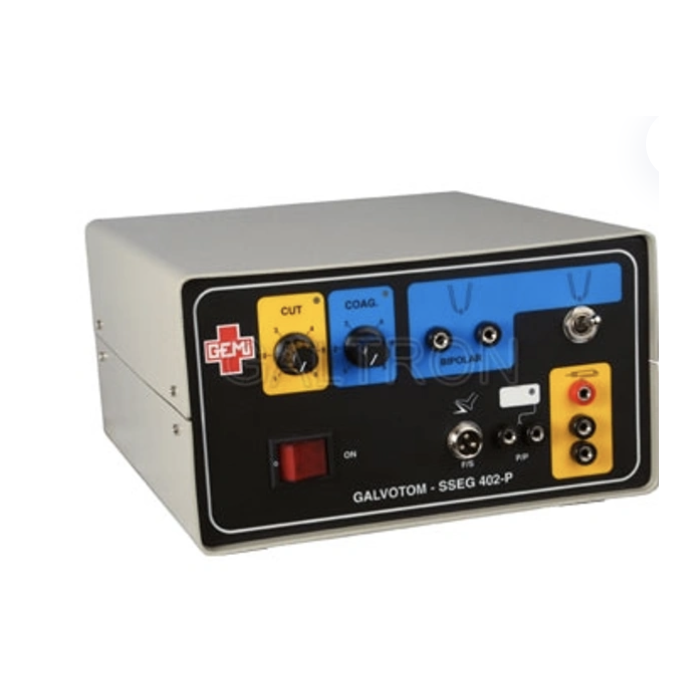

Gemi Analog ESU unit - Galvotom SSEG 402
Features:
- Fully Solid State design
- The monopolar generator provides CUT and COAGULATION facilities
- Operating mode are identified by audio tones
- Illuminated ON/OFF switch
- Patient plate monitoring circuit
- Audio indication for patient plate lead faults
- Fan cooling with silent operation
- Bipolar has CUT as well COAG
Standard Accessories:
- Monopolar handle with silicon cable with electrode set
- Bipolar forcep with silicon bipolar cable
- Patient Plate with cable
- Double Pedal Footswitch
- Mains cord
- Unit Cover
Optional Accessories:
- Monopolar forceps with cord and jack
- S.S. Paediatric Patient plate with cable
- Silicon patient plate with cable
- Servo controlled voltage stabilizer
- Pencil hand switch ( Disposable / Reusable )
In stock
SKU
SBGEP01740
Price:
0.00
(Inclusive of Taxable Goods)
Gemi Analog ESU unit - Galvotom SSEG 402 is available to buy in increments of 1
Contact us for sales assistance from our Biomedical Engineer.
Specifications :
Monopolar CUT
- PURE CUT : 200 ± 25 W, 500 ohms load
Monopolar COAG
- COAG : 120 ± 15 W, 300 ohms load
Bipolar
- COAG : 80 ± 10W, 125 ohms load
- CUT : 80 ± 10W, 125 ohms load
- Output Frequency : Frequency 500 ± 25 Khz
- Power : 220-240 Vac ± 5%, 50/60 Hz
- Dimensions(L X W X H) : 270 x 245 x 130 mm
- Weight : 7 kg
Applications:
- For all types of general surgeries and Bipolar cutting and coagulation.
