Features :
- 3 Vein Infusion Modes: Easy Speed-Setting Mode, Time-Volume Mode, Dosage Weight Mode.The system automatically opens up KVO after injection(reopens vein circulation)The machine automatically records the settings for last injection.
- Function to Auto-Define a Syringe: complete calibration technology for syringe brand definition that ensures the compatibility of any syringe, brand and injection accuracy.
- Voice Prompt and Voice Alarm Function: voice Prompt and alarm will sound when injection is almost done, injection is finished, preset dosage is done, an injection blockage occurs, syringe device is improperly installed, a wrong speed is set.

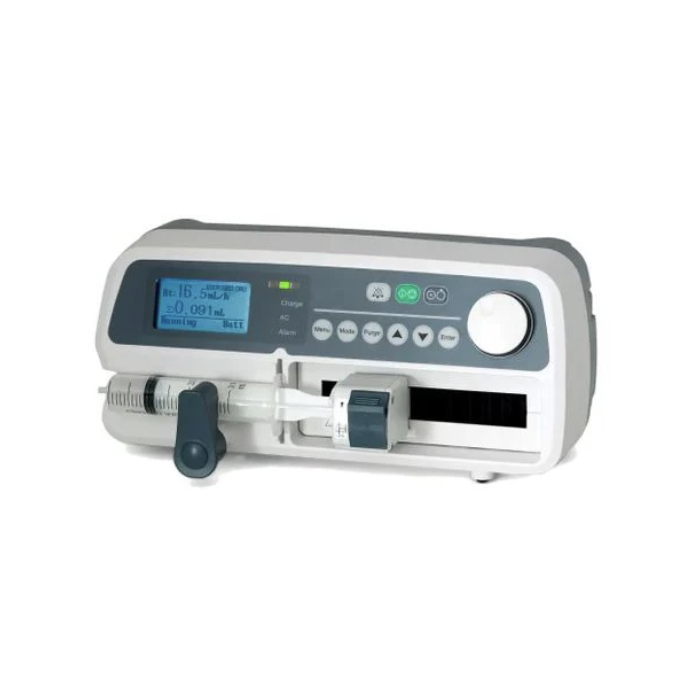

Korrida Syringe Pump KM-609
Contact us for sales assistance from our Biomedical Engineer.
No pulse delivery : full uniform motion , smooth pulseless ;
Without cleaning : fluid
Transport different characteristics just replace the syringe ;
Adaptability : suitable for a variety of different brands of syringes ;
High precision control : control error ± 3%.
Comprehensive index -type injection pump Products in the following table :
Injection rate 0.1m1 / h -500.0 ml / h, step : 0.1 ml / h Applicable syringe 5 ml, 10 ml, 20 ml, 30 ml, 50 ml
Speed setting range 5 ml: 0.1 - 50.0 ml / h, 10 ml: 0.1 - 100.0 ml /h, 20 ml: 0.1 - 200.0 ml / h, 30 ml: 0.1 -300.0 ml / h, 50 ml: 0.1 - 500.0 ml / h
Can be synchronized to display the cumulative increase in the amount of time the cumulative injection volume display 0.1-999.9 ml, rapid injection of state
Rapid injection speed 5 ml: 50.0 ml / h, 10 ml: 100.0 ml / h, 20 ml: 200.0 ml / h, 30 ml: 100.0 ml / h, 50 ml: 500.0 ml / h
Injection Accuracy ± 3% ( after trimming setting up to ± 2%)
KVO rate of 1m1 / h, keeping the vein open state Power Requirements AC 85V - 165V, 50 HZ
Built- in rechargeable lithium-ion battery battery, DC8.4V, 1600mAh; After fully charged 25.0 ml / h continuous work more than 5 hours
The flow rate of the display information , the amount of accumulation , syringe size , battery capacity, battery charging , AC power source, complete the display , the display clogging
Alarm alarm function is completed , nearing completion alarm, clogging alarm, low battery capacity, syringe abnormal , no AC alarm
Outline maximum size 303 . 126 . 118 mm (LxWxH)
Maximum weight is less than 2kg
