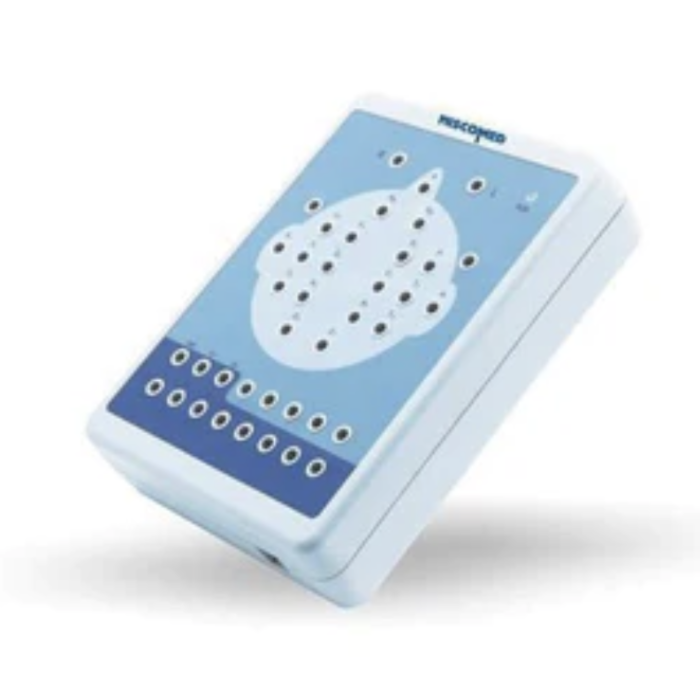

Niscomed Electroencephalogram EEG Machine - KT88-16 Channel
Technical Specifications:
- 16 Channel of EEG+2 channel of ECG( ECG is optional)
- Sampling rate: 100 dots
- Accuracy: 12 bit
- Input impedance: >10M
- Patient leak current: <10a
- Noise level: <5uVp-p
- CMRR: >90dB
- Magnification multiple: 10000
- Filter constant all digital and free enactment
- Display speed ( paper speed): 5,10,15,30,60,120 mm/s
- Amplitude: 1, 1.5 , 2,3,5,7.5,10,12,15,20,30,50 mm/50uV
- Playback speed: 1 time , 2time, 3 time, 10 time, 20time 40 time ,60 times
- 50Hzs interferance suppression: >30dB
- Safety type: Class II , type BF applied part
Contact us for sales assistance from our Biomedical Engineer.
An electroencephalogram (EEG) is a test that detects electrical activity in your brain using small, metal discs (electrodes) attached to your scalp. Your brain cells communicate via electrical impulses and are active all the time, even when you're asleep. This activity shows up as wavy lines on an EEG recording.Most waves of 8 Hz and higher frequencies are normal findings in the EEG of an awake adult. Waves with a frequency of 7 Hz or less often are classified as abnormal in awake adults, although they normally can be seen in children or in adults who are asleep.Most EEGs are done to diagnose and monitor seizure disorders. EEGs also can identify causes of other problems, such as sleep disorders and changes in behavior. They're sometimes used to evaluate brain activity after a severe head injury or before a heart transplant or liver transplant.
