Features:
Standard Accessories:
- Monopolar handle with silicon cable with electrode set
- Bipolar forcep with silicon bipolar cable
- Patient Plate with cable
- Double Pedal Footswitch
- Disposable Hand switch
- Mains cord
- Unit Cove
Optional Accessories:
- Silicon Patient plate
- Reusable Hand switch
- Bionet Bipolar forcep
- Long 9” Bipolar forcep
- Small 4” Bipolar forcep
- Angled tip Bipolar forcep
- Monopolar forcep with cable
ESU Applications
- Gynecology
- Endoscopy ( ERCP )
- Oncosurgery
- Heart & Chest surgery
- Neurosurgery
- Spine
- Arthroscopy
- All other general surgical procedures

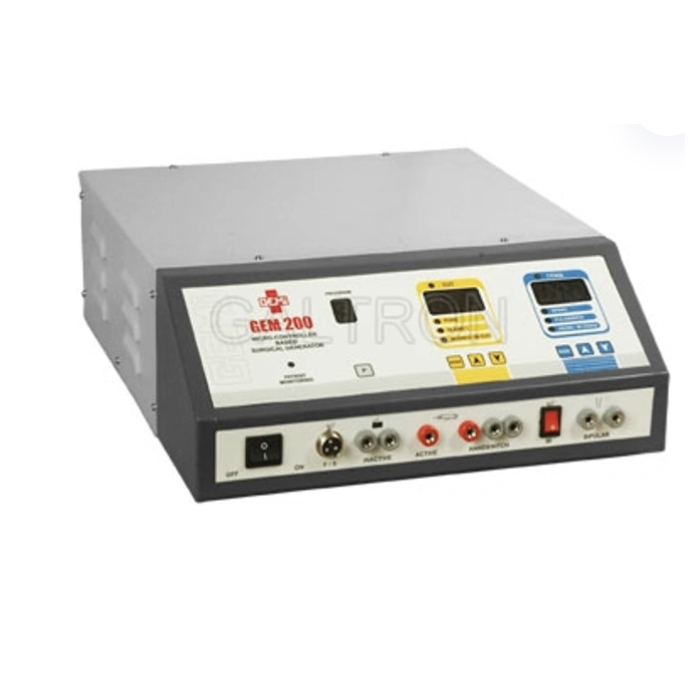

Gemi Micro Computer Controlled ESU unit - GEM 200
Contact us for sales assistance from our Biomedical Engineer.
Specification:
Monopolar CUT
PURE CUT : 480 Khz sinusoid, 200 W @ 300 E
BLEND1 : 480 Khz sinusoid with 70% duty cycle, 150 W @ 300 E
BLEND2 : 480 Khz sinusoid with 55% duty cycle, 120 W @ 300 E
Monopolar COAG
SPRAY : 480Khz sinusoid bursts, 120 W @ 500 E
FULGURATE : 480Khz damped sinusoid bursts, 150 W @ 500 E
DESICCATE : 480 Khz sinusoid with very low max. voltage, 80 W @ 500 E
BIPOLAR
COAG : 480 Khz sinusoid with lower output voltage, 80 W @ 100 E
CUT : 480 Khz sinusoid with high output voltage, 150 W @ 100 E
Dual area PREM
patient return Electrode : 10 – 135 ohms
Single Patient Return electrode : < 20 ohms
Power Deviation : less than 15% or 5 watts, whichever is greater
Power supply : 180 – 270 Vac , 50/60 Hz
Max. Power Input : 1000VA, Fuse : 5A
