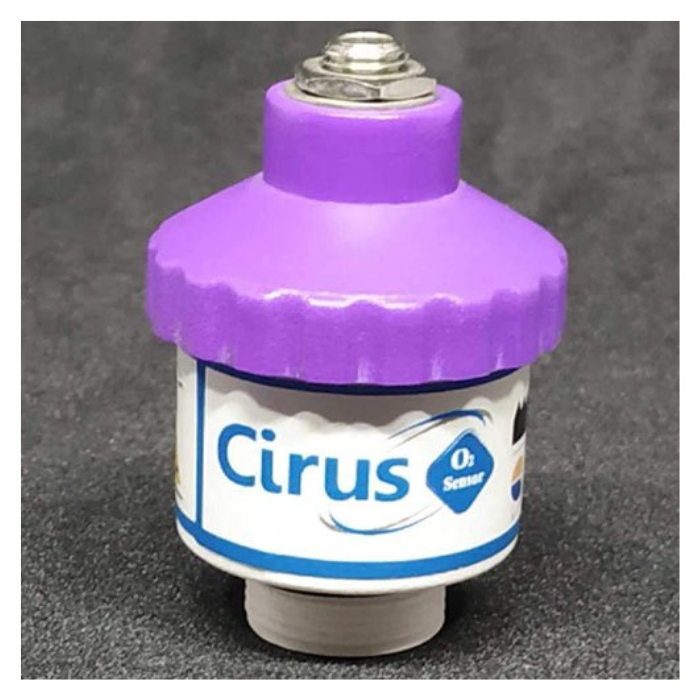

Cirus OS 2 Medical Oxygen Sensor

The Cirus OS 2 Medical Oxygen Sensor is a high-precision, long-life sensor designed for use in ventilators, anesthesia machines, and patient monitoring systems. With fast response time, high repeatability, and broad compatibility, this sensor ensures accurate oxygen concentration monitoring in critical care environments.

In stock

SKU

SBCI09833

Price: 0.00 (Inclusive of Taxable Goods)

Cirus OS 2 Medical Oxygen Sensor is available to buy in increments of 1

Product Description

Features:

Wide Compatibility: Works with popular ventilator models including Bird 6400/8400, Covidien PB 850, Datascope, and more.
Highly Stable Output: Delivers consistent performance with <1% drift over 6 hours.
Fast Response Time: Achieves 90% response in 15 seconds or less.
Long Sensor Life: Designed for over 300,000 O₂ hours (~5 years in air at 25°C and 1 atm).
Excellent Accuracy: ±1% repeatability between 15–100% oxygen levels.
Secure Connection: Equipped with a 3.5 mm mono jack for reliable interfacing.
Temperature & Pressure Resilient: Performs across a wide operating and storage range.
Medical-Grade Build: Meets clinical standards for respiratory and anesthesia devices.

Technical Details

Technical Details
Technical Specification	Brand: Cirus Model: OS 2 Usage/Application: Hospital / ICU / Anesthesia Monitoring Measurement Range: 0% to 100% O₂ (at atmospheric pressure) Output Range: 9 to 13 mV (in dry ambient air) Nominal Sensor Life: >300,000 O₂ hours Repeatability: ±1% O₂ volume (15%–100%) Linearity Error: <3% of full scale Response Time (T90): ≤15 seconds Stability: <1% drift over 6 hours (between 15–100% O₂) Zero Offset Voltage: <220 V in 100% N₂ Operating Temperature: 0°C to 40°C Storage Temperature: -20°C to +50°C Operating Humidity: 0% to 93% RH (±2%) – non-condensing Operating Pressure Range: 0.6 bar to 2 bar (pp O₂) / up to 1250 mbar Electric Interface: 3.5 mm mono jack Compatible Models: Bird 6400, 8400, Sentry Covidien Puritan-Bennett PB 850 Datascope 7820 Monitor, 7200 Ventilator Anestar S, Datex-Engström, Erica, Elvira Philips Respironics Esprit Ventilator PLV-102, VTI 100580, and more

Product Components

1 × Cirus OS 2 Medical Oxygen Sensor

Product Advantages

Clinical-Grade Reliability: Supports critical care systems with dependable O₂ monitoring.
Universal Compatibility: Plug-and-play support for leading medical devices.
Cost-Effective: Long service life reduces replacement frequency and operating costs.
Accurate Measurement: Maintains stable and repeatable readings under varying conditions.
Quick Installation: 3.5 mm jack ensures easy and secure connectivity.
Optimized for Ventilators & Anesthesia Units: Specifically designed for respiratory equipment.
