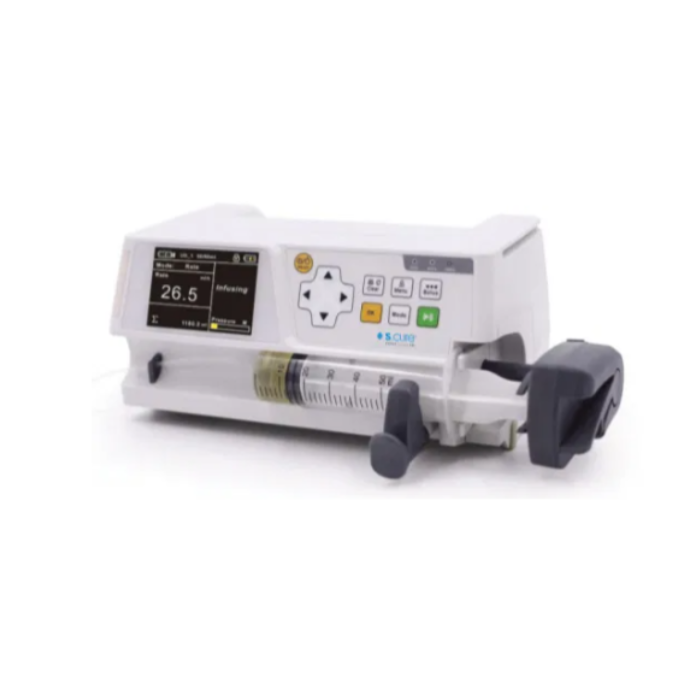

Syringe Pump — Model No. SP 501

The SP 501 Syringe Pump is a high-precision infusion device designed to deliver accurate and consistent medication administration. It features a large color LCD display, intuitive keypad, multiple infusion modes, dedicated calibration, and comprehensive safety alarms — making it ideal for clinical and critical care environments.

₹22,400.00

In stock

SKU

SBSY06311

Price: 20,000.00 (Inclusive of 12% GST)

Syringe Pump — Model No. SP 501 is available to buy in increments of 1

Product Description

Features:

Large, clear 3.5” Color LCD Display
Easy-to-use keypad with increment/decrement keys for flow rate adjustments
Compatible with 5 ml, 10 ml, 20 ml, 30 ml, and 50/60 ml syringes of various brands
Three infusion modes: Rate Mode, Time Mode & Dose Mode
Dedicated Syringe Calibration Mode for precise delivery
Three adjustable occlusion levels (High, Medium, Low)
Bi-directional alarm indicator for enhanced safety
Rechargeable lithium battery with up to 8 hours backup
Purge and Bolus function for flexible operation
KVO (Keep Vein Open) feature automatically maintains patency after infusion
Sliding & locking function for easy stacking
Audible and visual alarms for multiple error conditions (occlusion, empty syringe, low battery, incorrect settings, etc.)

Technical Details

Technical Details
Technical Specification	Model: SP 501 Display: 3.5” Color LCD Display Injection Rate: 50/60 ml Syringe: 0.1 ml/h ~ 2000.0 ml/h 30 ml Syringe: 0.1 ml/h ~ 1200.0 ml/h 20 ml Syringe: 0.1 ml/h ~ 800.0 ml/h 10 ml Syringe: 0.1 ml/h ~ 400.0 ml/h 5 ml Syringe: 0.1 ml/h ~ 200.0 ml/h Increment: 0.1 ml/h or 1 ml/h (0.1 ~ 99.9 ml/h: 0.1 ml/h step, 1 ml/h from 100 ~ 2000 ml/h) Flow Rate Accuracy: ±2% (after syringe calibration) Volume to Be Infused (VTBI): 0.0 ~ 9999 ml (increment 0.1 or 1 ml) Infusion Time: 00 hr 01 min ~ 99 hr 59 min (increment 1 min) Bolus Rate: 50/60 ml: 0.1 ~ 2000 ml/h 30 ml: 0.1 ~ 1200 ml/h 20 ml: 0.1 ~ 800 ml/h 10 ml: 0.1 ~ 400 ml/h 5 ml: 0.1 ~ 200 ml/h Purge Rate: 50/60 ml: 0.1 ~ 1500 ml/h 30 ml: 0.1 ~ 1200 ml/h 20 ml: 0.1 ~ 800 ml/h 10 ml: 0.1 ~ 400 ml/h 5 ml: 0.1 ~ 200 ml/h Bolus Volume: 1.0 ~ 100.0 ml (increment 0.1 ml) Occlusion Levels: High: 900 mmHg ± 112 mmHg Medium: 675 mmHg ± 112 mmHg Low: 450 mmHg ± 112 mmHg Anti-Bolus Reduction Volume: <0.5 ml (high occlusion) <0.3 ml (low occlusion) KVO Rate: 3 ml/h (if flow rate ≥3 ml/h; else, KVO equals actual rate) Alarms: Occlusion, Empty, Near Empty, Complete, Low Battery, Loose Syringe, AC Fail, Pump Error, Rate Error, etc. Power Source: 220V AC, 50 Hz; Internal rechargeable Li battery (2000 mAh, 11.1 V DC), 8 hours backup at 5 ml/h Dimensions: 240 x 150 x 117 mm (W × D × H) Weight: 3 kg Optional: Drug Library, Event History (up to 2000 injection records), Docking Station
