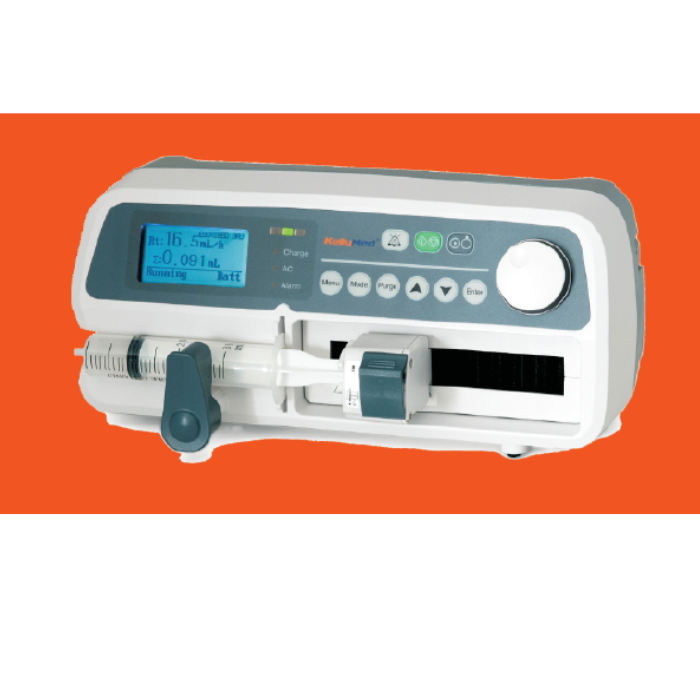

Kellymed Syringe Pump KL-602

• <1000 ml: increments of 0.1 ml

• ≥1000 ml: increments of 1 ml

• Range: 0.1 – 9999 ml

Flow Rate:

• 10 ml Syringe: 0.1 – 400 ml/h

• 20 ml Syringe: 0.1 – 600 ml/h

• 30 ml Syringe: 0.1 – 900 ml/h

• 50/60 ml Syringe: 0.1 – 1300 ml/h

• <100 ml/h: increments of 0.1 ml/h

• ≥100 ml/h: increments of 1 ml/h

Bolus Rate: 400 ml/h – 1300 ml/h (adjustable)

Anti-Bolus: Automatic

Accuracy: ±2% (mechanical accuracy ≤1%)

Infusion Mode: Time-based; Weight-based (mg/kg/min, mg/kg/h, μg/kg/min, μg/kg/h, etc.)

KVO Rate: 0.1 – 1 ml/h (in 0.1 ml/h increments)

Alarms: Occlusion, near empty, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, standby, pressure sensor error, syringe installation error, syringe drop off

Additional Features: Real-time infused volume, automatic power switching, automatic syringe identification, mute key, purge, bolus, anti-bolus, system memory, key locker

Drug Library: Available

Occlusion Sensitivity: High, Medium, Low

Docking Station: Stackable up to 4-in-1 or 6-in-1 with single power cord

Wireless Management: Optional

Power Supply (AC): 110/230 V (optional), 50/60 Hz, 20 VA

Battery: 9.6 ± 1.6 V, rechargeable

Battery Life: 7 hours at 5 ml/h

Working Temperature: 5 – 40 °C

Relative Humidity: 20% – 90%

Atmospheric Pressure: 860 – 1060 hPa

Size: 314 × 167 × 140 mm

Weight: 2.5 kg

Safety Classification: Class II, Type CF
